Moto 2L

The Moto 2L was a brainchild of Patrick Lang of Sarthe county- France
Together with friend Henri LaPorte (the second L) they made this very
special racebike: Patrick Lang tells his story which starts in 1977:
"It is important to know that my passion is primarily mechanical and not
riding a bike. Following largely explains "my career" with motorcycles.
My first realization was the PL1, a Minarelli 50 engine in an Italian?

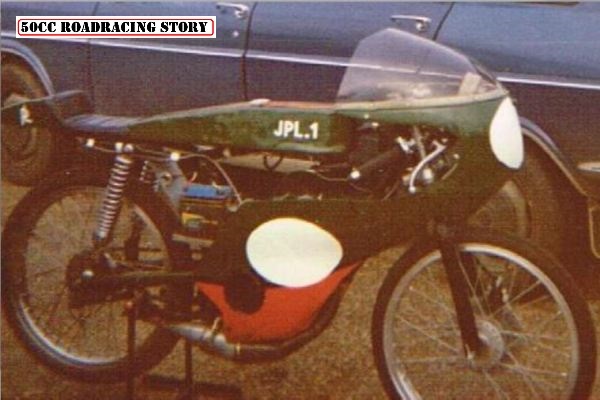

mopedframe. I raced this bike a few times in 1977." Patrick Langs first racer - Minarelli P6 engine in a moped frame.

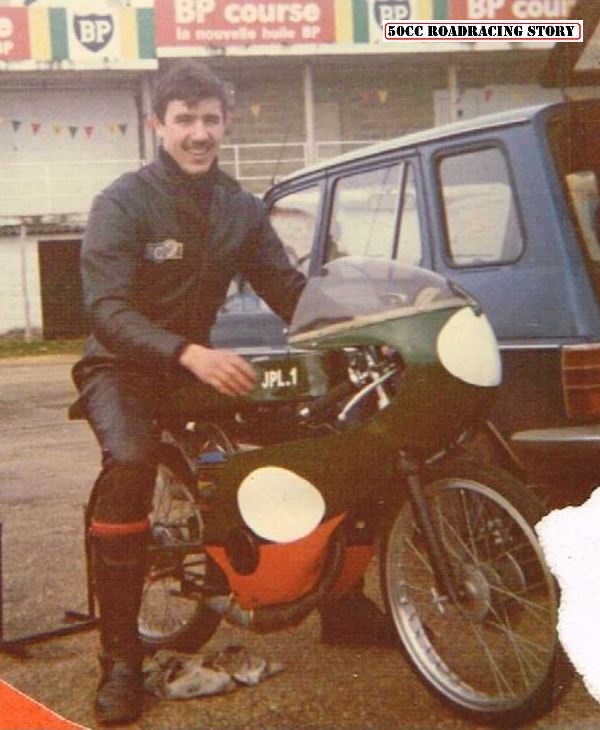

Patrick Lang and his first racebike. "Mid season, following the high number of failures on the Minarelli
engine, I bought an aircooled Kreidler with rotary valve. As the
PL1 frame was not appropriate, I mounted the engine in a 50cc
Peugeot BB road frame."

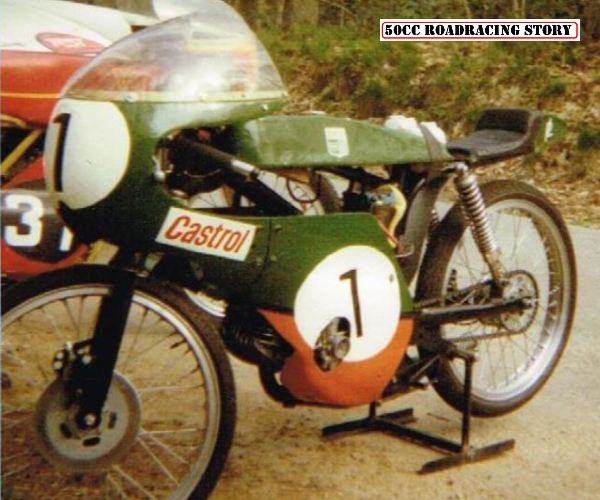

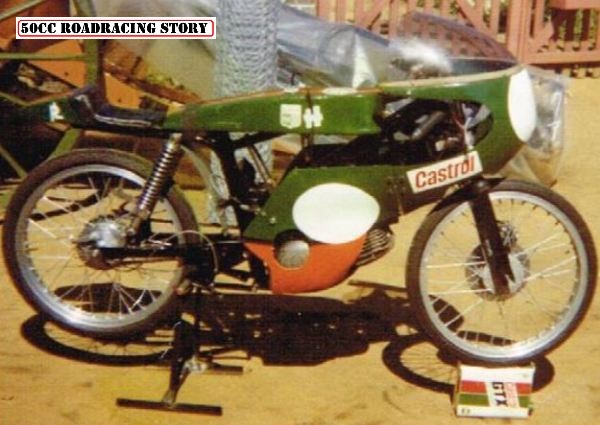

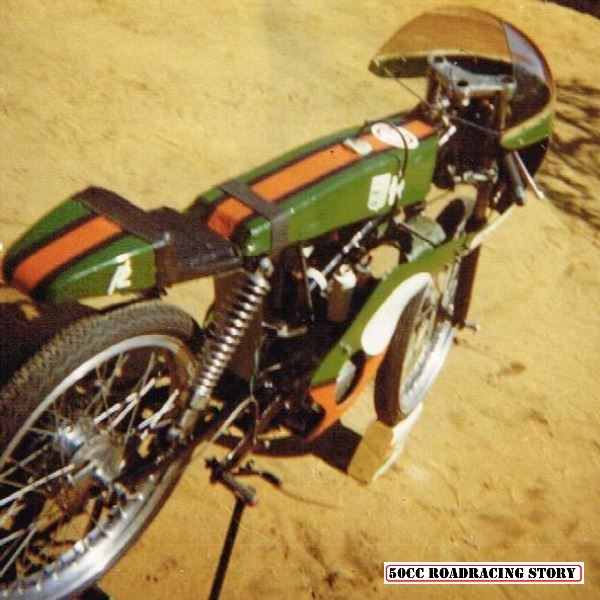

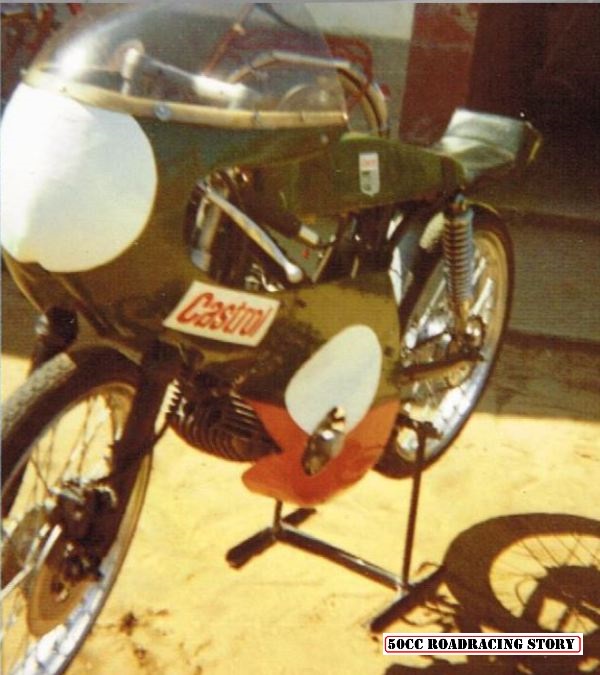

Patrick Langs first Kreidler.

1977 Montaigu hill climb - Patrick Lang finished 6th here.

"For the 1978 season, I decided to build my first real racing
frame in order to adapt a Kreidler engine with the complete

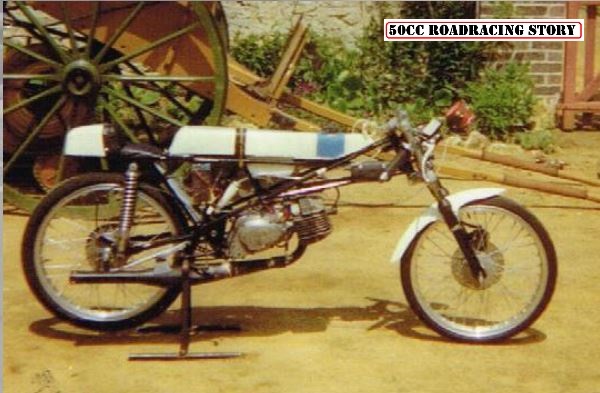

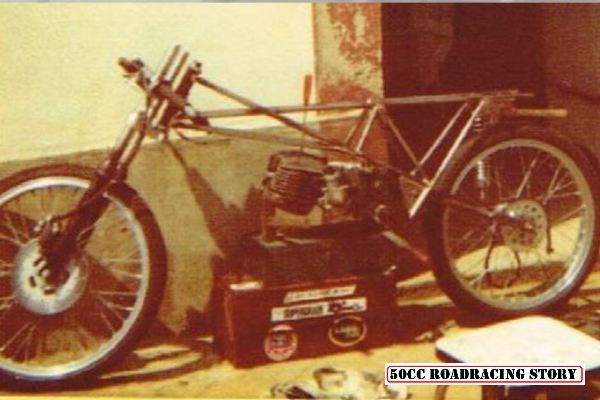

Van Veen liquid kit." The PL3 prepared for a watercooled Van Veen kit engine.

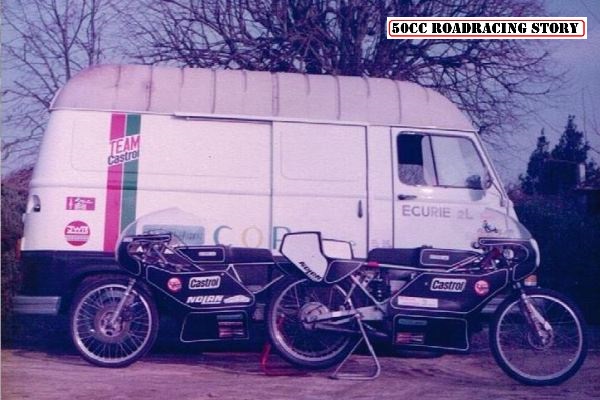

1979: team Moto2l. "In 1979 Henry and I created “L’écurie 2L”: Lang + Laporte = 2L.
For this we used a Scrab chassis with Van Veen kittet engines.
I start my first major modification on engines:

A spécial cylinder head with removable combustion chamber.
I would use this head on all Moto 2L engines.

Modifying the right Kreidler crankcase to be able to extract
the gears, without removing the engine off the frame. The goal
was to easily adapt a lot of ratios depending on the circuit."

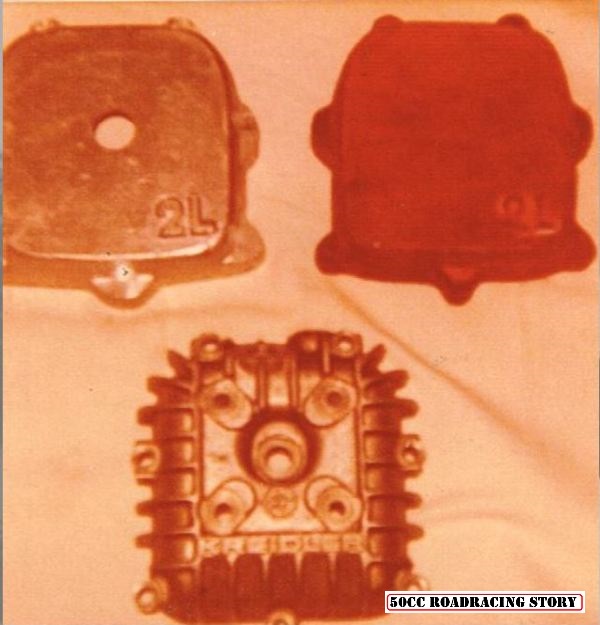

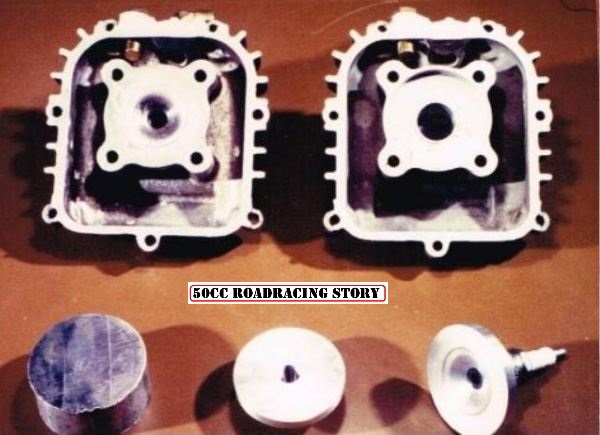

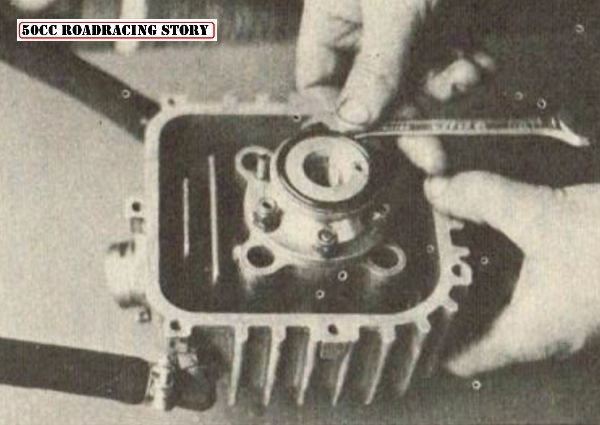

Cylinderheads modified for interchangable chambers. New head cover castings.

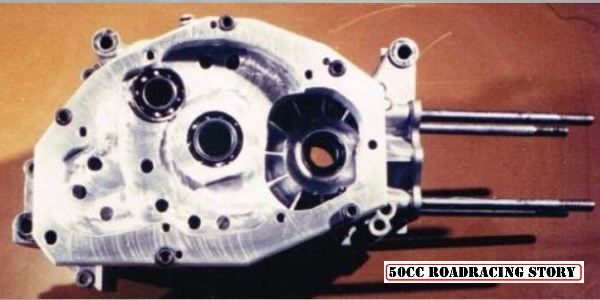

Kreidler crankcases modified for casette- trans adaption. Kreidler engine modified by Patrick Lang.

1980:
"During the winter of 1979 I was immobilized following an operation of my
arm, due to a fall at Ledenon. That winter I designed the

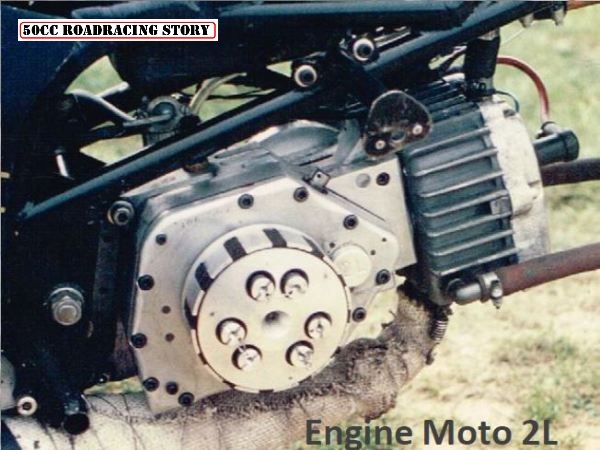

chassis and engine of the future Moto 2L. Worked much during
winter to build 2 bikes:

Henry’s bike:
Frame Moto 2L, Engine based on Kreidler cranck, transmission
and clutch Moto 2L, Kreidler cylinder, cylinderhead Moto 2L.
This machine keeps spoked wheels.

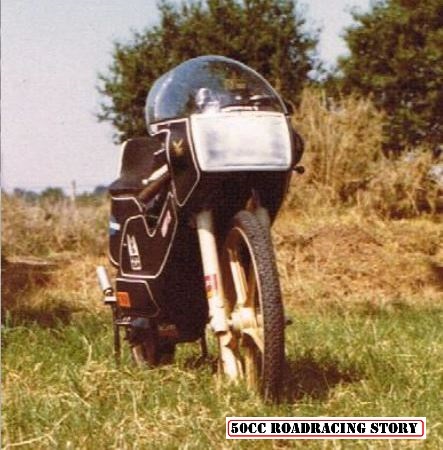

Patrick’s bike: Frame & engine Moto 2L with Campagnolo wheels. Both bikes had
nose- mounted radiators Bultaco- like.

Result of the season:

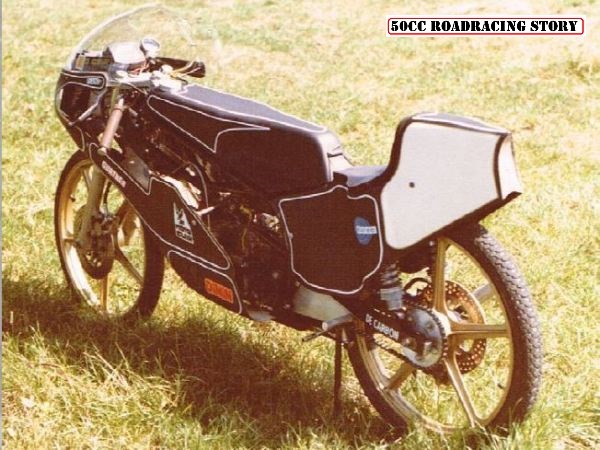

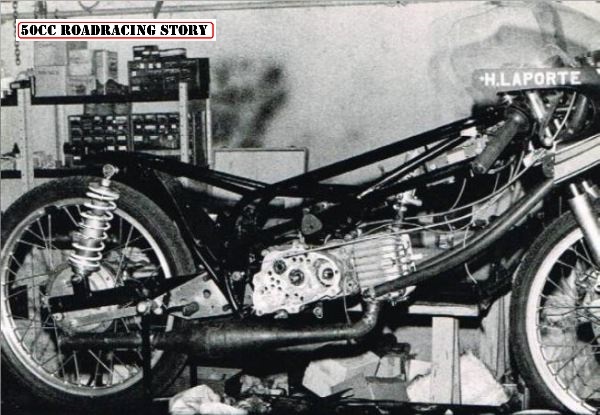

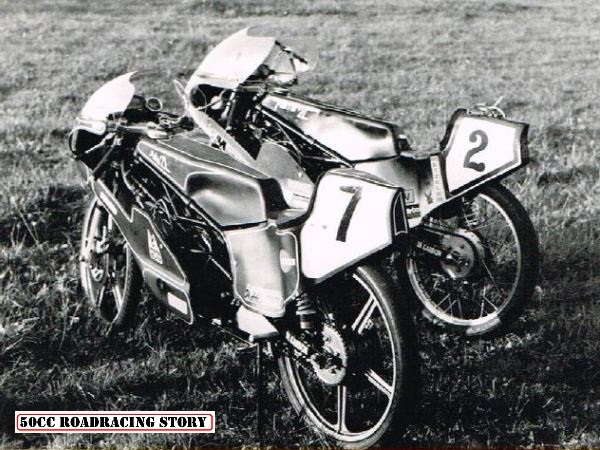

Henry Laporte: Second in the french hill climbing championship." New frames for the Moto2L.

1981:
After a 1980 season well used for development, the results now arrive.
On Patrick’s bike, the radiator is back in a more traditional
position with a new fairing, to obtain better engine cooling.

Result of the season:
Patrick Lang: 2nd at the french hill climbing championship
and 5th in french international.

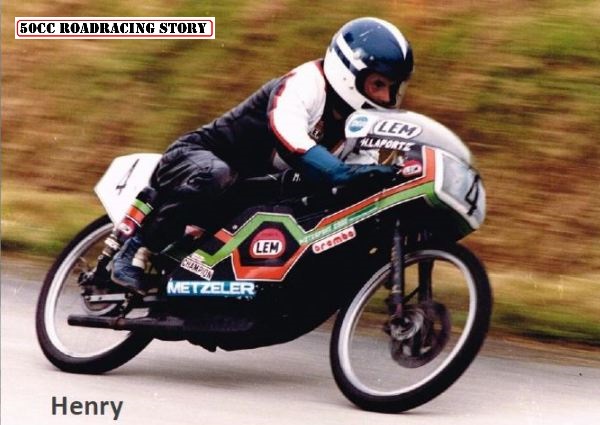

Henry Laporte: 4th at the french international championship.

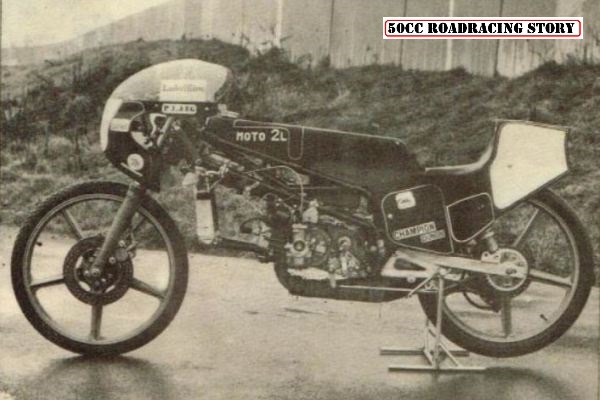

Start at the Croix en Ternois - front row left Henry and next to him Patrick Patrick Lang and his 1981 Moto2L.

and Henry LaPorte.

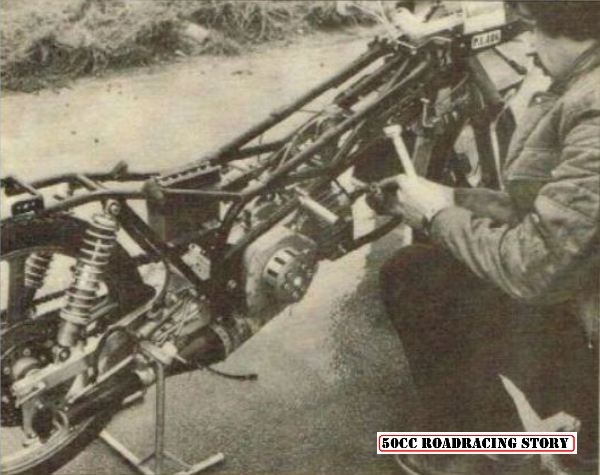

Chassis

1982:
Just a few races this season because of Patricks professional activity.
Patrick wanted to focus on the preparation and find a good
driver for the 1983 season, the last season for 50 cc class.
Paul Bordes ride the first time the Moto 2L at Magny-cours.
He is leading the race but he had to stop during the last

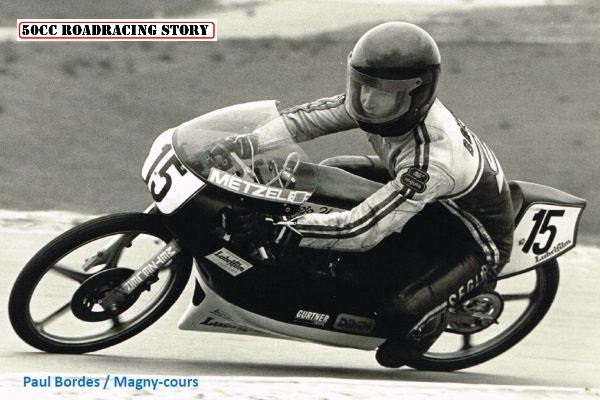

lap, due to a water leak. Paul Bordes tries out the Moto2L - 1982 Magny Cours.

Technical description:
Chassis:
Frame made of 25CD4S brazed tube.
Tank, seat and fairing in composite
Hydraulic discbrakes front and rear.
Rear suspension with single shock absorber.
Engine:
Crankcases machined from solid aluminium.
Casette transmission with several ratios available.
Maximum rpm: 18 000.
Carburator Mikuni or Gurtner of 30 mm diameter.
Power 18 hp.
Maximum speed: 180 km/h.
Michelin tires.
Bike was designed by Patrick Lang advised by Henry Laporte.

1983:
"Main focus this year was the French championship.
Only one Grand Prix was programmed, the goal here was to
qualify for the French GP. But surprise, Paul realized a
good qualifiying in finished in 7th place. After that GP
we decided to focus on the world championship. For the
next GP we decided to fit a new generation Hummel cylinder
to increase power. Adviced by Hans Hummel, both a
cylinderhead and exhaust were required, and increased rev
range to 18000, to obtain more power.
For all GP´s Paul qualified without problems, the power
was there. But at every race, he was last of the line
and had to perform extraordinary to get back into the
leading group of the race. If he could make better starts

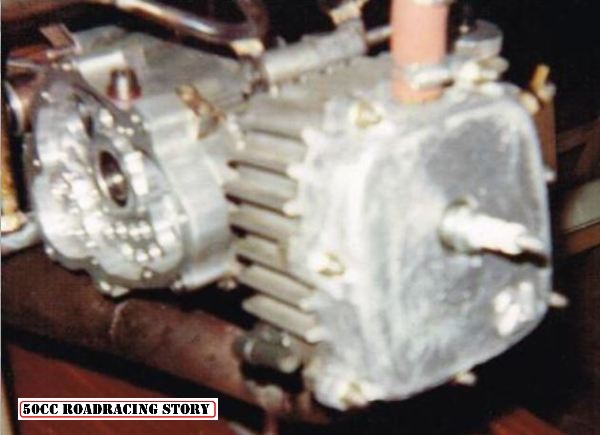

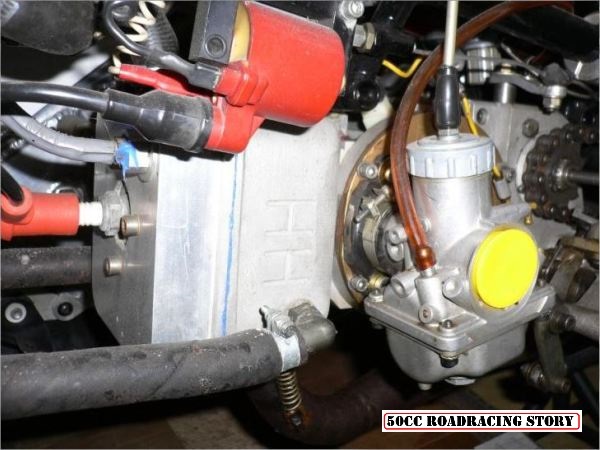

he probably would finish around 5th place, but...." Moto2L engine with Hans Hummel cylinder.

Start of the Italian GP - Paul Bordes and the Moto2L.

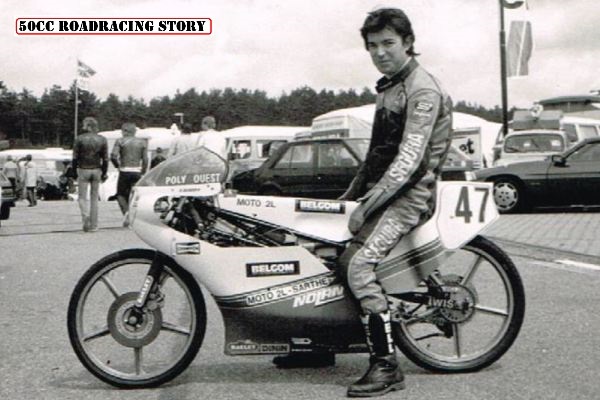

83 GP of Spain - changing ratios during practise. The fast Moto 2L ridden by Paul Bordes at the 1983 German GP.

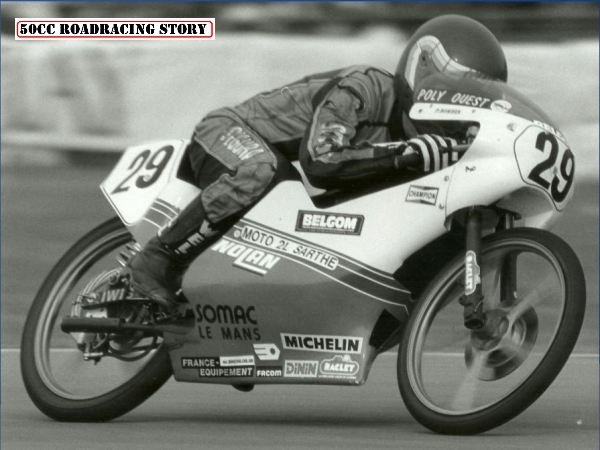

Start of the Dutch GP in Assen - Paul Bordes. Paul Bordes during the Dutch GP.

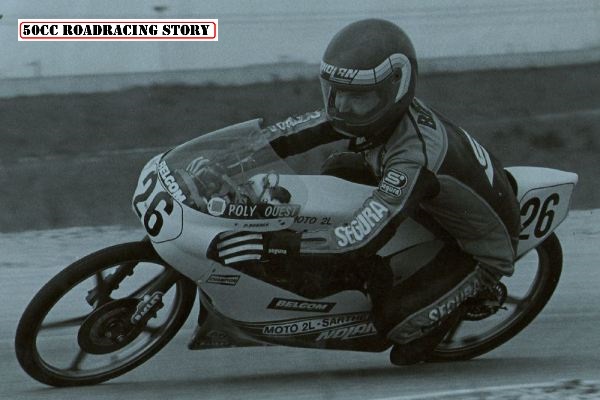

Zooming past the pits. Paul Bordes at the Carole circuit in 1983.

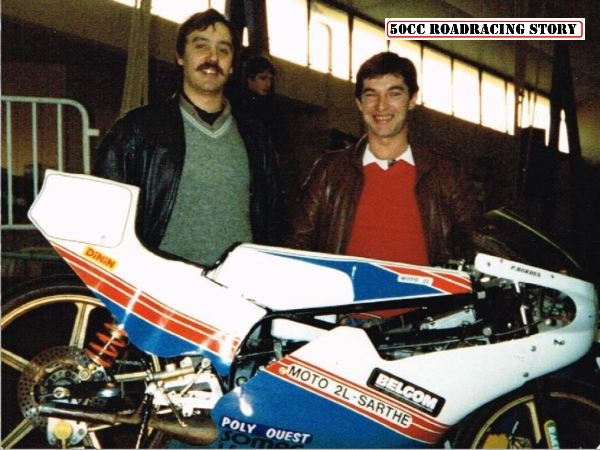

Finishing last season of 50cc Grand Prix racing with good results - Patrick Lang and rider Paul Bordes. Result of 1983 season:
15th in 50cc world championship
France 7th
Italy 10th (practice 12th)
Spain 13th(practice 12th)
Yugoslavia out
Germany 13th (practice 15th)
San Marino out
Holland 13th
